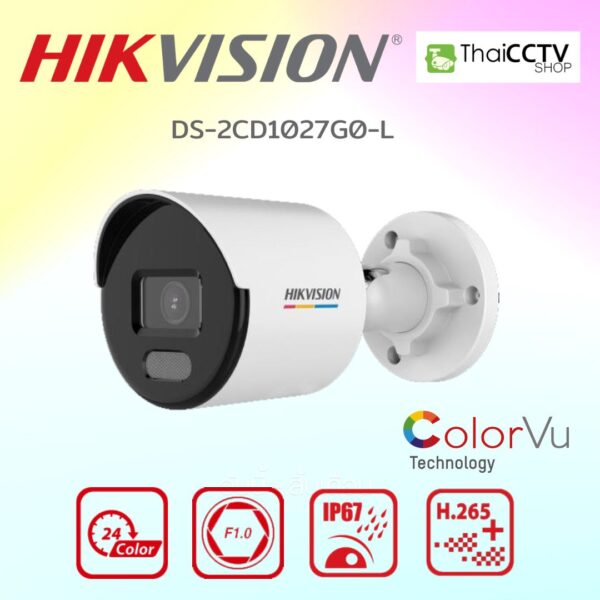

DS-2CD1027G0-L(C) Hikvision colorVu 2mp CCTV IP Camera

DS-2CD1027G0-L(C) กล้องวงจรปิด Hikvision colorVu IP 2ล้านพิกเซล

DS-2CD1027G0-L(C)กล้องวงจรปิด Hikvision colorVu IP 2ล้านพิกเซล

2 MP ColorVu Fixed Bullet Network Camera
ความละเอียด 2 MP
ประสิทธิภาพที่ยอดเยี่ยมในที่แสงน้อย
เทคโนโลยีการบีบอัด H.265 + ที่มีประสิทธิภาพ
กันน้ำและฝุ่น (IP67)
การถ่ายภาพที่มีสีสันตลอด 24 ชั่วโมงทุกวัน
รับประกันสินค้า 3ปี

2 MP ColorVu Fixed Bullet Network Camera
• High quality imaging with 2 MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 24/7 colorful imaging

Specifications

Camera | Lens | Image | Interface | General | Approval

Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Slow ShutterYes
• P/NP/N
• Wide Dynamic RangeDigital WDR

Lens
• Lens Type & FOV
2.8 mm, horizontal FOV 107, vertical FOV 56, diagonal FOV 127
4 mm, horizontal FOV 84, vertical FOV 45, diagonal FOV 99
• ApertureF1.0
• Lens MountM12
• Aperture TypeFixed
• Depth of Focus
2.8 mm: 1.7 m to ∞
4 mm: 2.1 m to ∞

• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
• Linkage Method
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger capture
*Note: External device is required.
• Web Client LanguageEnglish
• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Software ResetReset via web browser and client software
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
• Power Consumption and Current
12 VDC, 0.30 A, max. 3.6 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
• Power InterfaceØ5.5 mm coaxial power plug
• MaterialMetal
• Camera Dimension68.4 × 65.2 × 161.1 mm (2.7″ × 2.6″ × 6.3″)
• Package Dimension172 × 104 × 80 mm (6.8″ × 4.1″ × 3.1″)
• Camera WeightApprox. 420 g (0.9 lb.)
• With Package WeightApprox. 510g (1.1 lb.)

Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection Ingression protection: IP67 (IEC 60529-2013)

Data Sheet >>> Download <<<
