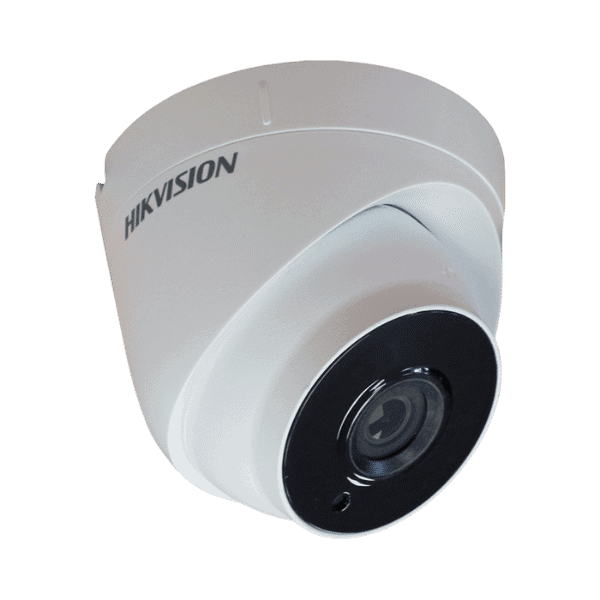

DS-2CE56D7T-IT3 กล้องวงจรปิด Hikvision 2MP

DS-2CE56D7T-IT3 กล้องวงจรปิด HIKVISION 2MP

DS-2CE56D7T-IT3 กล้องวงจรปิด HIKVISION 2MP

ความละเอียดภาพ 1080P

0.01 Lux

Lens 3.6 mm.

1 EXIR IR, IR Length 40 m.

WDR, IP66 Support OSD Menu

DS-2CE56D7T-IT3
HD1080P WDR EXIR Turret Camera
• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 20/40m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

Specifications

Camera | Lens | Image | Interface | General

Camera
• Image Sensor: 2MP CMOS Image Sensor
• Signal System: PAL/NTSC
• Effective Pixels: 1928(H)*1088(V)
• Shutter Time: 1/25(1/30) s to 1/50,000 s
• Lens Mount: M12
• Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
• Day& Night: IR cut filter with auto switch
• Wide Dynamic Range: 120dB
• Video Frame Rate: 1080p@25fps/1080p@30fps
• HD Video Output: 1 Analog HD output
• Synchronization: Internal Synchronization
• S/N Ratio: More than 62 dB
• Up the Coax: Support

• Auto White Balance: Auto/MWB
• BLC: Support
• AGC: Support
• Language: English/Chinese

Lens
• 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional
• Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm)

• Effective Pixels: 1928(H)*1088(V)

Interface
• 1Analog HD output

General
• Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
• Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC±15%
• Weather Proof: IP66
• IR Range: Up to 20m
• Communication : Up the coax
• Protocol: HIKVISION-C(Coaxitron)
• Dimension: φ110mm×93.2mm (φ4.33”×3.67”)
• Weight: 350g (0.77lb)

Data Sheet >>> Download <<<
