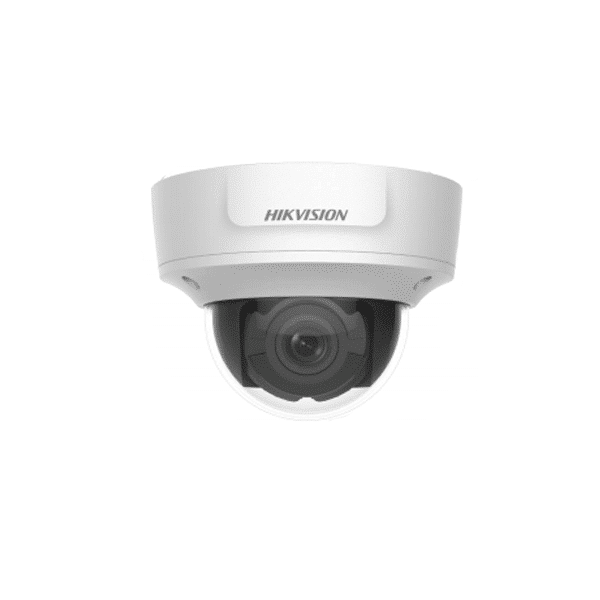

DS-2CD2721G0-I Hikvision 2mp CCTV Camera

DS-2CD2721G0-I กล้องวงจรปิด Hikvision 2mp

DS-2CD2721G0-I กล้องวงจรปิด Hikvision 2mp

Hikvision ความละเอียด 2 ล้านพิกเซล

เลนส์ขนาด 2.8-12mm (varifocal)

มาตรฐาน IP67 IK10

รองรับระบบ H.265

ระยะอินฟาเรด 30 เมตร

Built-in micro

Hikvision รับประกันสินค้า 3 ปี

2 MP WDR Varifocal Dome Network Camera
• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• -Z: motorized varifocal lens for easy installation and monitoring
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Robust structure design with full metal materials

Specifications

Camera | Lens | Image | Interface | General | Approval

Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);,B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°

Lens
• Focus-Z: Auto,Without –Z: Manual
• Lens Type2.8 to 12 mm
• FOVHorizontal FOV: 99.6° to 35°, vertical FOV: 53.5° to 20°, diagonal FOV: 118.6° to 40.2°
• ApertureF2.0
• Lens MountΦ14
• Aperture TypeFixed

• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in (-S)
• Target CroppingNo
• DNR3D DNR
• Image EnhancementBLC/3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Interface
• Audio1 input (line in), 1 output (line out), mono sound
• Alarm 2 inputs,2 outputs
• Video OutputCVBS
• On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
• Firmware VersionV5.5.6
• General FunctionOne-key reset, anti-flicker, heartbeat, three streams, mirror, password protection, privacy mask, watermark, IP address filter
• Startup and Operating Conditions-30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE (802.3af, class 3)
• Power Consumption and Current-Z:,12 VDC, 0.8 A, max. 10 W,PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, max. 12 W,Without –Z:,12 VDC, 0.5 A, max. 6 W ,PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, max. 8 W
• Camera DimensionΦ 153.3 × 111.6 mm (Φ 6″ × 4.4″)
• Camera WeightCamera: approx. 880 g (1.9 lb.),With package: approx. 1300 g (2.9 lb.)

Approval
• ProtectionIK10, IP67

Data Sheet >>> Download <<<
