DS-2CD2325FWD-I Hikvision 2mp cctv camera

DS-2CD2325FWD-I กล้องวงจรปิด Hikvision 2mp

DS-2CD2325FWD-I Hikvision DS-2CD2325FWD-I

ความละเอียด 2 ล้านพิกเซล

เลนส์ขนาด 2.8/4mm

มาตรฐาน IP67

รองรับระบบH.265, H.265+, H.264+, H.264

ระยะอินฟาเรด 30 เมตร

Hikvision รับประกันสินค้า 3 ปี

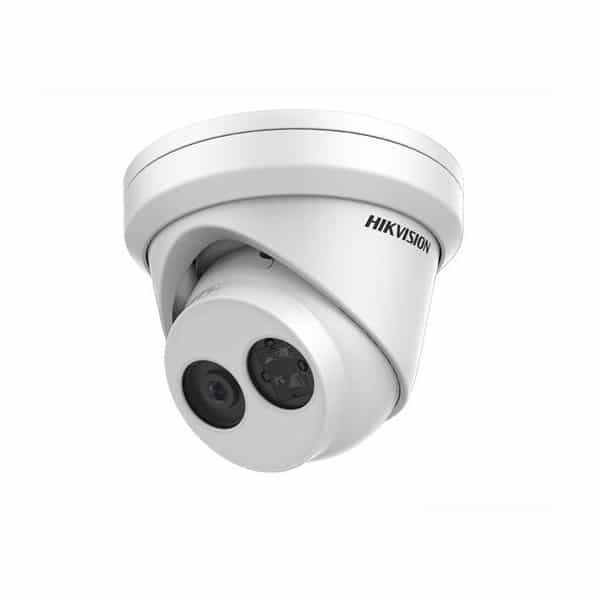

Hikvision DS-2CD2325FWD-I

2MP Powered by DarkFighter Fixed Turret Network Camera
• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal materials.

Specifications

Camera | Lens | Image | Interface | General | Approval

Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
• FocusFixed
• Lens Type2.8/4/6/8/12 mm
• FOV2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°
• ApertureF1.6
• Lens MountM12

• Day/Night SwitchDay/Night/Auto/Schedule
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface
• On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware VersionV5.5.80
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Consumption and Current12 VDC ± 25%, 6 W, PoE (802.3af, 36 V to 57V, class 3), 7 W
• Camera DimensionCamera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″);Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)
• Camera WeightCamera: 620 g (1.37 lb.)

Approval
• IP67

Data Sheet >>> Download <<<
