DS-2CD2065G1-I Hikvision 6mp CCTV Camera

DS-2CD2065G1-I กล้องวงจรปิด Hikvision 6mp

DS-2CD2065G1-I กล้องวงจรปิด Hikvision 6mp

Hikvision ความละเอียด 6 ล้านพิกเซล

เลนส์ขนาด 2.8/4mm

มาตรฐาน IP67,K10

รองรับระบบ H.265+, H.265, H.264+, H.264

ระยะอินฟาเรด 30 เมตร

Hikvision รับประกันสินค้า 3 ปี

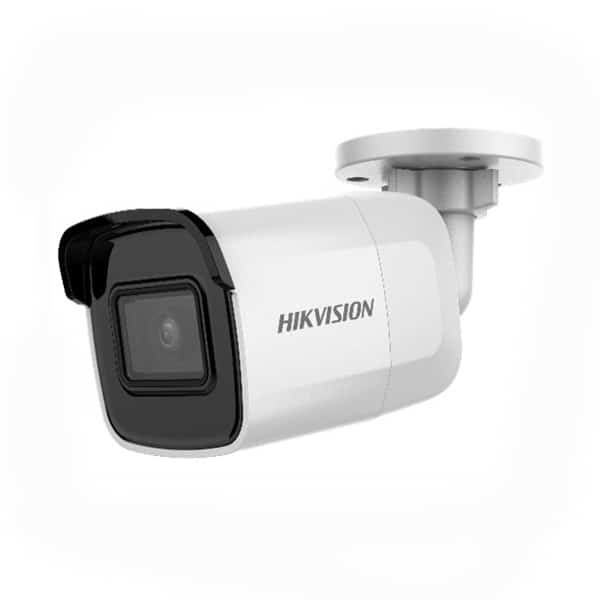

Hikvision DS-2CD2065G1-I

6 MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera
• High quality imaging with 6 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal material.

Specifications

Camera | Lens | Image | Interface | General | Approval

Camera
• Image Sensor1/2.4″ Progressive Scan CMOS
• Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
• FocusFixed
• Lens Type2.8/4/6 mm
• FOV2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°;4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°;6 mm, horizontal FOV: 60°, vertical FOV: 38°
• ApertureF1.6
• Lens MountM12
• Aperture TypeFixed

• Day/Night SwitchDay/Night/Auto/Schedule
• Target CroppingNo
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
• Video OutputNo
• On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
• Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware VersionV5.5.80
• Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)
• Power Consumption and Current12 VDC, 0.5 A, max: 6 W, PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W
• Camera DimensionCamera: 70 × 68 × 171 mm (2.8″ × 2.7″ × 6.7″)
• Camera WeightCamera: 400 g (0.9 lb.),With package: 700 g (1.5 lb.)

Approval
• ProtectionIP67

Data Sheet >>> Download <<<
