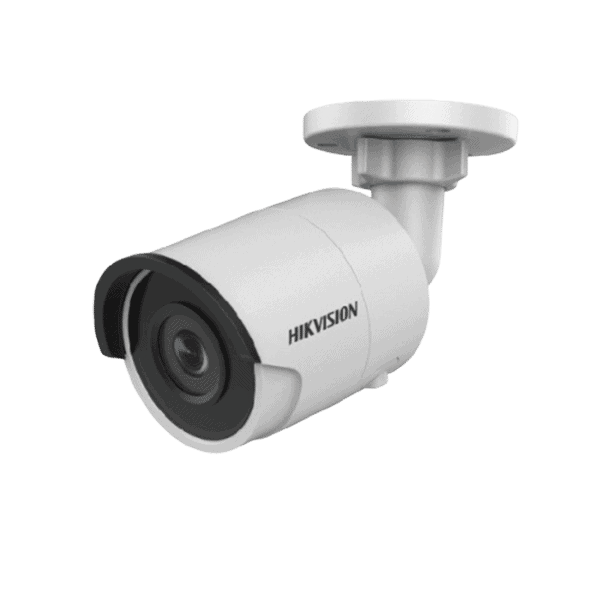

DS-2CD2045FWD-I Hikvision 4mp CCTV Camera

DS-2CD2045FWD-I กล้องวงจรปิด Hikvision 4mp

DS-2CD2045FWD-I กล้องวงจรปิด Hikvision

Hikvision ความละเอียด 4 ล้านพิกเซล

เลนส์ขนาด 2.8/4mm

มาตรฐาน IP67

รองรับระบบ H.265+, H.265, H.264+, H.264

ระยะอินฟาเรด 30 เมตร

Hikvision รับประกันสินค้า 3 ปี

4 MP IR Fixed Bullet Network Camera
4 MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera
• High quality imaging with 4 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal material.

Specifications

Camera | Lens | Image | Interface | General | Approval

Camera
• Image Sensor1/2.5″ Progressive Scan CMOS
• Min. IlluminationColor: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
• FocusFixed
• Lens Type2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131° 4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105° 6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61° 8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48° 12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
• Lens MountM12
• Aperture TypeF1.6

• Day/Night SwitchDay/Night/Auto/Schedule
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
• On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply12 VDC, 0.5 A, max. 5.5 W PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
• Camera DimensionCamera: Φ70 × 155 mm (Φ2.8″ × 6.1″) Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″)
• Camera WeightCamera: 410 g (0.9 lb.)

Approval
• ProtectionIP67

Data Sheet >>> Download <<<
